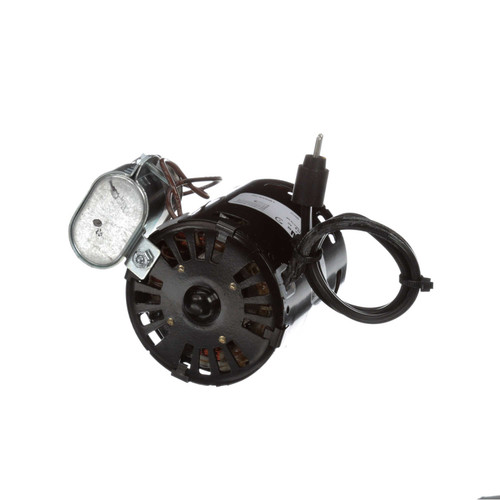

1/15 hp 1550 RPM CCW 3.3" Diameter 208-230V (Bohn Refrigeration) Fasco # D1125

Part #
D1125
Manufacturer
Fasco
Weight
3.00 LBS
Shipping
$10.95 (Fixed shipping cost)
Price:
$62.82 RRP:

Description

  • 1/15 hp 1550 RPM, .4 amps, 208-230 Volts 60hz.
  • Shaft: 5/16" x 2 5/8"
  • Rotation = Counter Clockwise SE
  • Motor case length = 3.75"
  • Belly Band Mount or Stud Mount; 4 mounting studs on each end
  • Special low temperature oil, motor has cord with molded plug.
  • 1 Year Manufacture Warranty

Reference Information: Bohn, Heatcraft 7190-0442, 7190-2084, 7071061, 7190-2084, 25309101. AO Smith/Century 9720A; Emerson 9656. Dayton 48GN47. Application Information Condenser Fan, Cooler: Evaporative, Cooler: Walk-In, Display Case: Refrigerated, Refrigeration Fan. Motor Length Less Shaft = 3.75"
