USA

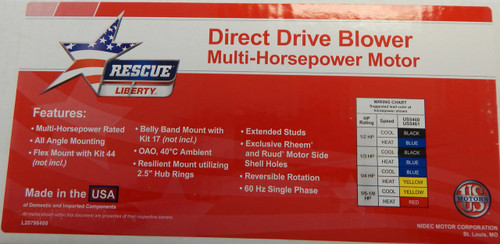

1/2-1/6 hp 1075 RPM 4-Speed 5 5/8" 208-230V Direct Drive Furnace Motor # US5461

Part #
US5461
Manufacturer
US Motors
Weight
17.00 LBS
Shipping
Calculated at checkout
Price:
$102.98 RRP:

Description

  • 1/2 - 1/6 hp 1075 RPM, 3.6 amps 208-230V 60hz.
  • 4-Speed
  • 5.6" Diameter Motor
  • Multifit motor will replace 1/6 thru 1/2 hp motor
  • Includes 10 MFD 370V Capacitor for 1/2 hp
  • Includes 5 MFD 370V Capacitor for 1/3-1/6 hp
  • Motor Body Length 5.25"
  • Shaft 1/2" x 5", Rotation Reversible
  • 40º Ambient Temp
  • 2.5" Diameter Rings
  • Sleeve Bearings
  • 36" Wire Leads
  • Rheem Shell Holes
  • MADE IN USA of domestic & imported components
  • 1 Year Manufacture Warranty.

Standard Efficiency Continuous Duty - Air Over; Permanent Split Capacitor.  These motors will work in most "Belly Band Applications" meaning if the motor is mounted via a strap/clamp around the body of the motor or mounts with the motor "thru-bolts. Belly band brackets available: Torsion Flex Bracket (3-Prong) # 2MEY7, Torsion Flex Bracket (4-Prong) # FM554, Welded 3-Ring Bracket # 2MEV4.

Rescue Liberty Multi fit motor will replace 1/6, 1/4, 1/3, 1/2 hp direct drive blower motors.
