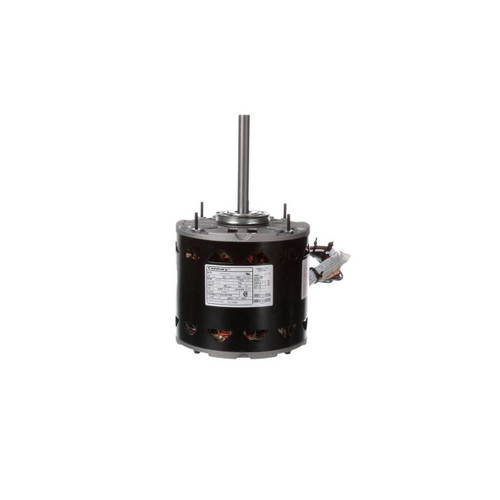

1/2 hp 1075 RPM 3-Speed 48 Frame 115V Direct Drive Furnace Motor Century # DL1056

Part #
DL1056
Manufacturer
Century Electric Motor
Weight
18.00 LBS
Shipping
Calculated at checkout
Price:
$88.95 RRP:

Description

  • 1/2 hp 1075 RPM, 6.5 amps
  • 115 Volts, 3-Speed
  • Service Factor = 1.0
  • Includes 10 MFD 370V Capacitor
  • 5.6" Diameter, Motor Body Length 5 1/4""
  • 1/2" x 4.5" shaft, Rotation Reversible
  • 26" Leads
  • Sleeve Bearings

Permanent Split Capacitor Motor. 2 1/4" Resilient Rings. Belly Band or Stud Mount. Automatic Overload Protection. Continuous Duty; Easy Rotation Change; Enclosure; Continuous Duty; Class B Insulation; Residential Application; 40C Ambient Temperature; 26" Leads; 5.6" Diameter; Capacitor Included. These motors will work in most "Belly Band Applications" meaning if the motor is mounted via a strap/clamp around the body of the motor or mounts with the motor "thru-bolts. Belly band brackets available: Torsion Flex Bracket (3-Prong) # 2MEY7, Torsion Flex Bracket (4-Prong) # FM554, Welded 3-Ring Bracket # 2MEV4. One year warranty. Suggested replacement for 5KCP39PGN655S, G3587, 324P187
