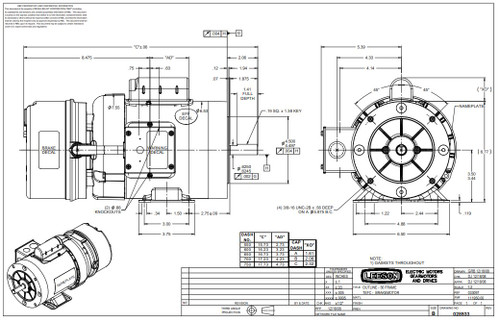

1/2 hp 1725 RPM 56C Frame TEFC C-Face (Rigid Base) Brake Motor 115/208-230V Leeson Motor # 111950
- Part #
- Gift Wrapping
- 32.00 LBS
- Free Shipping
- 1/2 hp 1725, 8.8/4.4 amps 115/208-230 Volts 60hz. single Phase Motor
- NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8"
- Brake Rating Ft. Lbs. = 3
- Service Factor: 1.15 - overload protection = None
- 1 Year Manufacture Warranty
Fail-safe positive, stop and hold brake motors. Brakes are spring set. Load is stopped automatically when power is turned off. Leeson brake motors feature a power off manual rease for convenience, and for use in case of power failure. The manual resets automatically. Brake is manufactured by Stearns. The brake coil leads are brought into the conduit box of the motor for easy connection and may be connected to operate when power to the motor is shut off or to be actuated independent of power to the motor. Brake coil is 115/230VAC, 60hz. Brake is a Stearns Brake.
