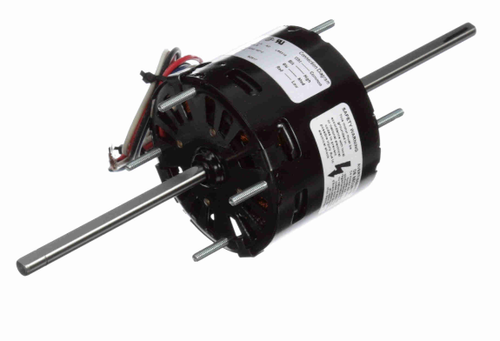

1/40 hp 1500 RPM 3-Speed 3.3" Diameter 115 Volts Fasco # D128

Part #
D128
Manufacturer
Fasco
Weight
3.00 LBS
Shipping
$10.95 (Fixed shipping cost)
Price:
$67.81 RRP:

Description

  • 1/40 hp 1500 RPM, 3-Speed
  • 1.3/.9/.7 Amps, 115 Volts 60 hz.
  • Shaft: 4" x 5/16" x 4" Double Shaft with flat that extends down length of shaft
  • Stud Mount - Bolt Circle - 2.85"
  • 4 mounting studs on each end
  • Sleeve Bearings
  • Rotation CCWLE
  • Motor Length Less Shafts = 2 1/2"
  • 1 Year Manufacture Warranty

Shaded Pole, Open Ventilation, Air Over. Extra studs can be cut off if not needed. Shaft can also be shortened if necessary. This is a versatile motor. Shaft can be cut off to obtain needed rotation. If you only need one speed, just use that speed, tape the unused wires. Reference 7163-1944. Dayton 38N537

Wiring:

White = Common
Black = High
Blue = Medium
Red = Low
