1.5 hp 1140 RPM 56Y 208-230/460V Condenser Fan Motor, Belly Band, Leeson # 111148
- Part #
- Gift Wrapping
- 42.00 LBS
- Free Shipping
- 1.5 hp 1140 RPM, 5.6/2.8 amps, 208-230/460V 60hz.

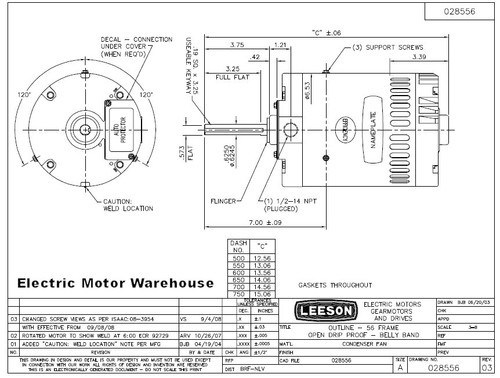

- Shaft 5/8" x 3.75" with Flat; 6.5" Diameter Motor
- Automatic Overload Protection; 1.15 Service Factor
- Belly Band Mount
- One Year Manufacture Warranty
Do Not Use with Drive Inverters. For Shaft Mounted Fan Applications Belly Band Mount Fan Motors designed for operating vertical shaft-up on condenser fan, air over applications. Enclosed endshield on shaft-end prevents contaminants from entering motor when mounted vertical shaft-up.Designed for belly band mount with three support screws located at 120° increments in motor frame. Shaft slingers located both internally and externally. Double sealed ball bearings with Exxon POLYREX EM grease having operating temperature range of 20°F to +350°F and special formulation to provide extra long life and moisture resistance. Phosphatized shaft for corrosion resistance. Gasketed conduit box. Ground screw accommodations. 1.15 Service Factor. Automatic overload protector also guards against primary single phasingUL component recognized (File E57955).
