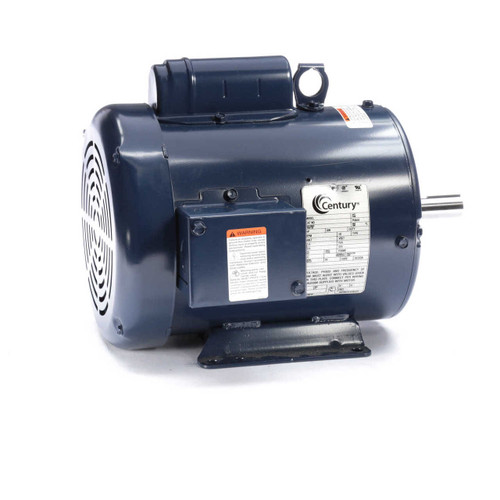

2 hp 1800 RPM 182TZ Frame (Farm Duty) 230/115V Century Electric Motor # K204M2
- Part #
- Century Electric Motor
- Gift Wrapping
- 76.00 LBS
- Calculated at checkout
- 2 hp 1800 RPM, 24.8/12.4 amps, 115/230 Volts 60 hz.
- NEMA 182TZ Frame Keyed Shaft 8" Diameter x 2 1/4"
- TEFC Totally Enclosed Fan Cooled - Service Factor = 1.0; Reversible
- Manual Overload Protection
- 1 Year Manufacture Warranty
AO Smith/Century Farm Duty Extra High Starting Torque, Capacitor Start motor. Designed for high starting torque loads (300-400% of full load torque). All parts corrosion resistant. Removable condensate plugs.Excellent motor for any application requiring a 2 hp motor. This Totally Enclosed motor is excellent for woodworking machines, farm equipment and other industrial machines where the motor is exposed to saw dust, dirt, oil and other particles in the air that will damage the motor. Motor also has manual overload protection to prevent damage in an overload situation. Mounting is standard NEMA 182TZ frame, flat base with 6 holes, ball bearings. Gasketed junction box and capacitor covers. Manual Overload Protection (red reset button). 1 Year Manufacture Warranty.
