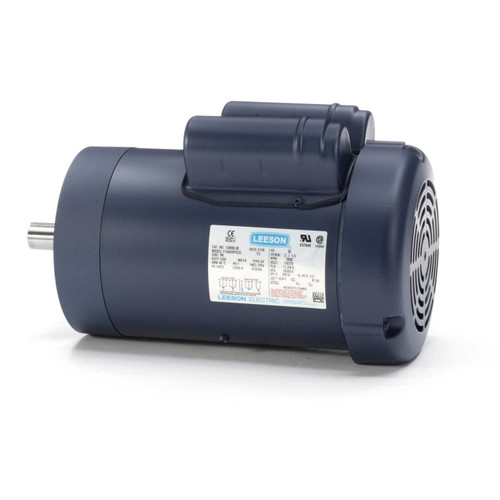

2 hp 2850 RPM 145TC Frame TEFC No Base 110/220V 50hz. Leeson # 120990

Part #
120990
Manufacturer
Leeson
Weight
42.00 LBS
Shipping
Free Shipping
Price:
$467.33 RRP:

Description

  • 2 hp 2850 RPM, 17.2/8.6 amps, 110/220V 50 hz. (will not operate @ 60hz)
  • NEMA 145TC Frame Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.15 - overload protection = Manual
  • Reversible - No Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

This motor is rated for 50 hz. Power systems and will not operate on 60 hz. Operation on 60 hz. Will damage the motor.
