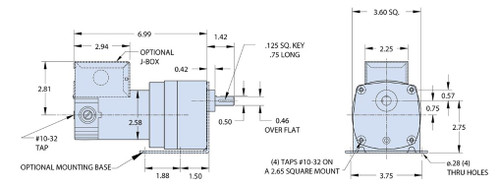

Bison Model 011-190-4096 Gear Motor 1/20 hp 20 RPM 24VDC

Part #
011-190-4096
Manufacturer
Bison Gear Motors
Weight
8.00 LBS
Shipping
Calculated at checkout
Price:
$330.99 RRP:

Description

  • 100 Series DC Parallel Shaft Gear Motor - Subject to factory availability-email or call for availability
  • Torque 100 inch pounds
  • Over Hung lbs. = 150
  • Rotation = Reversible
  • 1/20 hp 20 RPM, 2.4 amps, 24 Volts DC
  • TENV Enclosure, Keyed Shaft, Ball Bearings

Optional Accessories: P198-100-9111 Junction Box, P125-100-9998 Mounting Plate. Replacement Brush Set # P158-200-2615. Permanent Magnet motor, Insulation Class B; Finish: Powder-coat gloss black; Brushes: Replaceable; Gearhead Specifications: Housing - Precision machined die cast aluminum; Shafts - Hardened steel; Gearing: Hardened Steel worm. Forged bronze gear; Lubrication: Lifetime oil bath, sealed and gasketed; Any angle mount; Bearings - Ball and Needle Bearings. Can use with Leeson speed control 175290.
