Bison Model 011-348-4030 Gear Motor 1/4 hp 64 RPM 90VDC

Part #
011-348-4030
Manufacturer
Bison Gear Motors
Weight
20.00 LBS
Shipping
Calculated at checkout
Price:
$410.81 RRP:

Description

  • 348 Series DC Parallel Shaft Gear Motor - Subject to factory availability-email or call for availability
  • Torque 235 inch pounds
  • Over Hung lbs. = 290
  • 2 Stage
  • Rotation = Reversible
  • Rear tapped hole in shaft for encoder mount.
  • 1/4 hp 64 RPM, 2.51 amps, 90 Volts DC
  • TENV Enclosure, Keyed Shaft, Ball Bearings

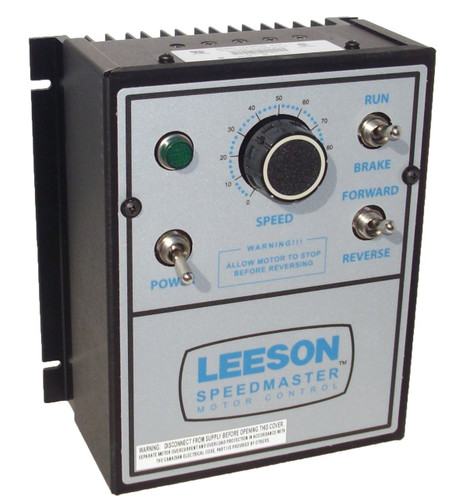

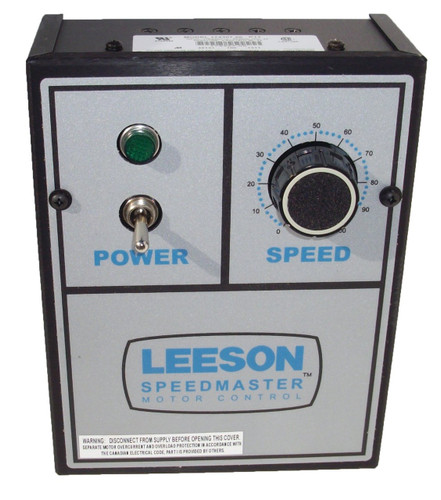

Optional Accessories: P198-300-0000 Junction Box. Permanent Magnet motor, Insulation Class B; Finish: Powder-coat gloss black; Brushes: Replaceable; Rear tapped hole in shaft for encoder mount. Gearhead Specifications: Housing - Precision machined die cast aluminum; Shafts - Hardened steel; Gearing: Hardened Steel worm. Forged bronze gear; Lubrication: Lifetime oil bath, sealed and gasketed; Any angle mount; Bearings - Ball and Needle Bearings. Suggested replacement reference for: Baldor GPP7455. Can use with Leeson speed control 174307, 174308.

PDF Documents
