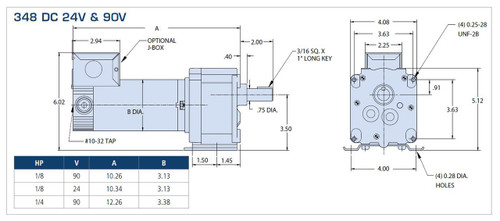

Bison Model 011-348-5200 Gear Motor 1/8 hp 8.3 RPM 24VDC

Part #
011-348-5200
Manufacturer
Bison Gear Motors
Weight
16.00 LBS
Shipping
Calculated at checkout
Price:
$443.12 RRP:

Description

  • 348 Series DC Parallel Shaft Gear Motor - Subject to factory availability-email or call for availability
  • Torque 310 inch pounds
  • Over Hung lbs. = 500
  • 3 Stage
  • Rotation = Reversible
  • Rear tapped hole in shaft for encoder mount.
  • 1/8 hp 8.3 RPM, 2.5 amps, 24 Volts DC
  • TENV Enclosure, Keyed Shaft, Ball Bearings

Optional Accessories: P198-100-9121 Junction Box. Permanent Magnet motor, Insulation Class B; Finish: Powder-coat gloss black; Brushes: Replaceable; Rear tapped hole in shaft for encoder mount. Gearhead Specifications: Housing - Precision machined die cast aluminum; Shafts - Hardened steel; Gearing: Hardened Steel worm. Forged bronze gear; Lubrication: Lifetime oil bath, sealed and gasketed; Any angle mount; Bearings - Ball and Needle Bearings. Suggested replacement reference for: Dayton 4ZJ45. Can use with Leeson speed control 175290.
