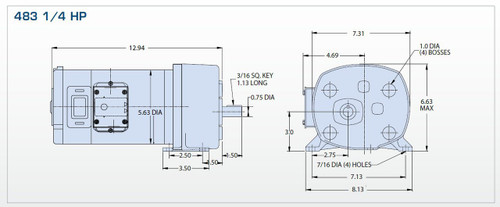

Bison Model 011-483-4087 Gear Motor 20 RPM 90VDC

Part #
011-483-4087
Manufacturer
Bison Gear Motors
Weight
34.00 LBS
Shipping
Calculated at checkout
Price:
$683.72 RRP:

Description

  • 483 Series DC Parallel Shaft Gear Motor - Subject to factory availability-email or call for availability
  • Torque 727 inch pounds; Over Hung lbs. = 695
  • Rotation = Reversible
  • 1/4 hp, 2.95 amps, 90 Volts DC
  • TENV Enclosure, Keyed Shaft, Ball Bearings

Permanent Magnet motor, Insulation Class B; Finish: Powder-coat gloss black; Brushes: Replaceable; Rear tapped hole in shaft for encoder mount. Gearhead Specifications: Housing - Precision machined die cast aluminum; Shafts - Hardened steel; Gearing: Hardened Steel worm. Forged bronze gear; Lubrication: Lifetime oil bath, sealed and gasketed; Any angle mount; Bearings - Ball and Needle Bearings. Suggested replacement reference for: Dayton 6Z408. Can use with Leeson speed control 174307, 174308.
