Bison Model 016-101-0026 Gear Motor 1/20 hp 63 RPM 115V 60HZ.

Part #
016-101-0026
Manufacturer
Bison Gear Motors
Weight
10.00 LBS
Shipping
Calculated at checkout
Price:
$261.43 RRP:

Description

  • 100 Series AC Parallel Shaft Gear Motor - Subject to factory availability-email or call for availability
  • Torque 49 inch pounds; Over Hung lbs. = 230

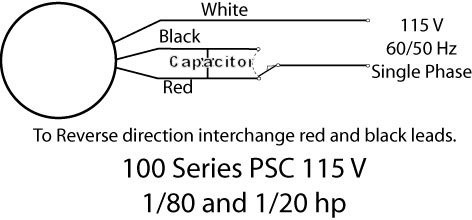

  • Rotation = Reversible; Junction Box Included
  • 1/20 hp 63 RPM, .62 amps, 115 VAC
  • TENV Enclosure, Keyed Shaft, Ball Bearings

Gearhead Specifications: Housing: Precision machined die cast aluminum. Lubrication: Lifetime oil bath, sealed and gasketed. Shafts: Hardened steel. Mounting: Face (any angle) or optional footplate. Gearing: 1st stage helical metal, balance spur metal. Bearings: Needle bearings on output shaft. P125-100-9998 Optional Bison Gearmotor Mounting Bracket. One Year Manufacture Warranty. Opening motor voids the warranty. Dayton equivilient 6Z083, Baldor equivilent GCP24136.

PDF Documents
