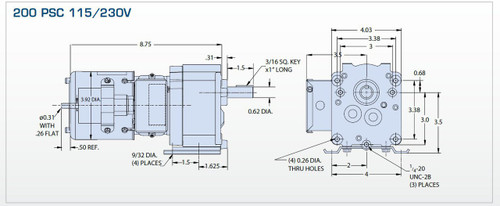

Bison Model 016-200-8050 Gear Motor 1/15 hp 30 RPM 115/230V 60 HZ.

Part #
016-200-8050
Manufacturer
Bison Gear Motors
Weight
12.00 LBS
Shipping
Calculated at checkout
Price:
$346.90 RRP:

Description

  • 200 Series AC Parallel Shaft Gear Motor - Subject to factory availability-email or call for availability
  • Torque 130 inch pounds; Over Hung lbs. = 175
  • Rotation = Reversible
  • 1/15 hp 30 RPM, 1.2/.63 amps, 115/230 VAC
  • TEFC Enclosure, Keyed Shaft, Ball Bearings

Motor Type: Permanent Split Capacitor. Gearhead Specifications: Precision machined die cast aluminum. Lubrication: Lifetime oil bath, sealed and gasketed. Shafts: Hardened steel. Mounting: Face (any angle) or footplate. Gearing: AGMA class 9 heat treated steel. 1st stage helical metal, balance spur metal. Bearings: Needle with thrust ball. Dayton Equivalent = 4Z519. One Year Manufacture Warranty. Opening motor voids the warranty.

PDF Documents
