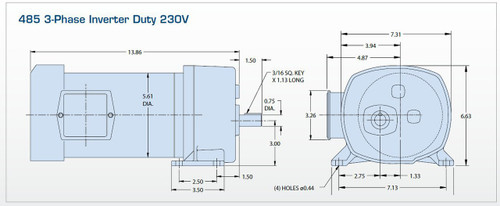

Bison Model 017-485-0131 Inverter Duty Gear Motor 1/2 hp 13 RPM 230V

Part #
017-485-0131
Manufacturer
Bison Gear Motors
Weight
35.00 LBS
Shipping
Calculated at checkout
Price:
$562.36 RRP:

Description

  • 485 Series AC Parallel Shaft Gear Motor - Subject to factory availability-email or call for availability
  • Torque 950 inch pounds; Over Hung lbs. = 797
  • Rotation = Reversible; Junction Box Included
  • 1/2 hp 13 RPM, 1.6 amps; 230V; 6-90 hz.; Three Phase
  • TEFC Enclosure, Keyed Shaft, Ball Bearings

Motor: Meets NEMA MG 1 sct 31; Powder-coat gloss black; Motor Bearings: Double shielded ball; Thermostat: Signal type; closed. UL/CUL recognized. Gearhead Specifications: Precision machined die cast aluminum ; Lubrication: Lifetime oil bath; Hardened steel shafts; Mounting: Face (any angle) or footplate. Gearing: AGMA class 9 heat treated steel, 1st stage helical metal, balance spur metal. Bearings: Needle with thrust ball. One Year Manufacture Warranty. Opening motor voids the warranty.
