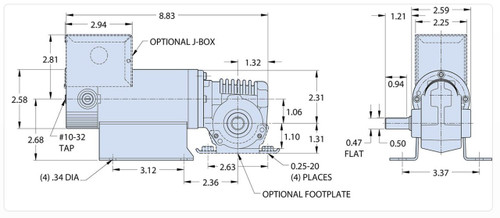

Bison Model 021-746-9015 Right Angle Gear Motor 1/15 hp 120 RPM 90V DC

Part #
021-746-9015
Manufacturer
Bison Gear Motors
Weight
8.00 LBS
Shipping
Calculated at checkout
Price:
$369.16 RRP:

Description

  • 746 Series DC Right Angle Gear Motor - Subject to factory availability-email or call for availability
  • Torque 26 inch pounds; Over Hung lbs. = 224
  • Rotation = Reversible
  • 1/15 hp 120 RPM, .8 amps, 90 Volts DC
  • TEFC Enclosure, Keyed Shaft, Ball Bearings

Optional Accessories: P198-100-9111 Junction Box, P125-746-0500 Mounting Foot Plate. P158-200-2600, Replacement Brush Set # P158-200-2600. Permanent Magnet motor, Insulation Class B; Finish: Powder-coat gloss black; Brushes: Replaceable; Gearhead Specifications: Housing - Precision machined die cast aluminum; Shafts - Hardened steel; Gearing: Hardened Steel worm. Forged bronze gear; Lubrication: Lifetime oil bath, sealed and gasketed; Any angle mount; Bearings - Ball and Needle Bearings. Suggested replacement reference for: Baldor GP233007. Can use with Leeson speed control 174307, 174308.
