Stearns Brake Kit 6 ft lb. 105602111003 575V Leeson # 175769

Part #
175769
Manufacturer
Leeson
Weight
9.00 LBS
Shipping
Free Shipping
Price:
$369.32 RRP:

Description

  • 575 Volts 60 hz.
  • 6 foot pounds
  • Max HP = 2
  • 56, 143T, 143TC, 145, 145TC 5/8" or 7/8" shaft dia.
  • RPM Range 1800
  • IP23 Enclosure

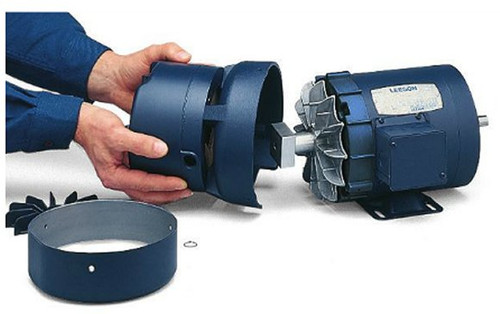

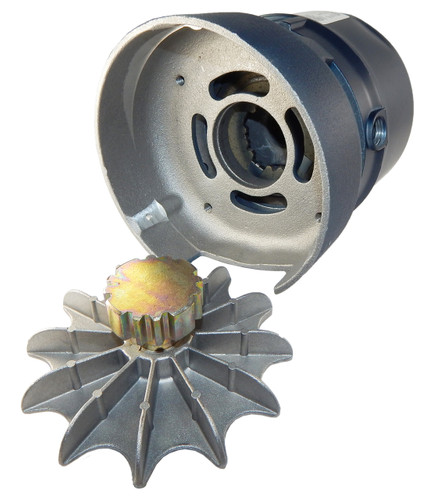

Kit easily installs on back (Rear) of certain Leeson Electric motors to convert to brake-motor use. Kit size is determined by NEMA frame and ft.-lb. of static torque required for the application. Includes mounting hardware.
Note: A start/stop cycle of no more than 1 stop per minute is acceptable for these brakes when used with a motor and reducer.
175769.00; 1-056-021-11-003
