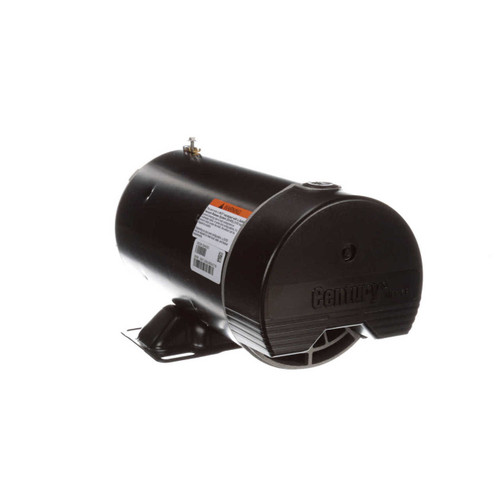

2 hp 3450 RPM 48Y Frame 115/230V Pool / Spa Electric Motor Century # BN40SS

Part #
BN40SS
Manufacturer
Century Electric Motor
Weight
32.00 LBS
Shipping
Calculated at checkout
Price:
$182.98 RRP:

Description

  • 2 HP 3450 RPM, 10.0/20.0 amps, 115/230V 60hz.; 1-Speed
  • Auto Overload Protection
  • Non-Reversible -CCW Facing the Shaft; Ball Bearings
  • 48Y Frame; Thru-Bolt mount -Rigid Base
  • One Year Manufacture Warranty

Stainless Steel Shaft. Above ground swimming pool and spa motors. These are called Thru-Bolt mount motors as the pump mounts to the face of the motor with the motor thru bolts. 48Y frame motors thru bolt dimension is 5 1/8" on center measured across the shaft. Shaft is 1/2" diameter with threads on end. Motor has flat-rigid base welded to motor case. Wiring connection diagram on motor name plate. These motors are found on the Hayward Powerflo, Waterway, Aquaflo, Dynamo and many other above ground pool and spa pumps. 1 Year Manufacture Warranty. Replaces Century BN40. US Electric Equivalent SPH20FLC1
