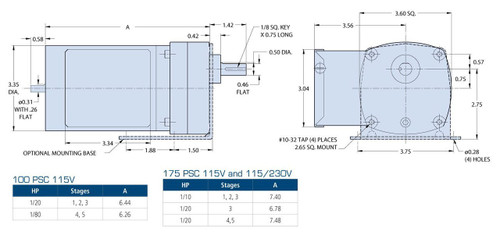

Bison Model 016-175-0186 Gear Motor 1/20 hp 8.8 RPM 115/230V 60/50HZ.

Part #
016-175-0186
Manufacturer
Bison Gear Motors
Weight
10.00 LBS
Shipping
Calculated at checkout
Price:
$364.85 RRP:

Description

  • 175 Series AC Parallel Shaft Gear Motor - Subject to factory availability-email or call for availability
  • Torque 170 inch pounds; Over Hung lbs. = 85
  • Rotation = Reversible; Junction Box Included
  • 1/20 hp 8.8 RPM, .46/.26 amps, 115/230 VAC
  • TENV Enclosure, Keyed Shaft, Ball Bearings

Gearhead Specifications: Housing: Precision machined die cast aluminum. Lubrication: Lifetime oil bath, sealed and gasketed. Shafts: Hardened steel. Mounting: Face (any angle) or optional footplate. Gearing: 1st stage helical metal, balance spur metal. Bearings: Needle bearings on output shaft. P125-100-9998 Optional Bison Gearmotor Mounting Bracket. One Year Manufacture Warranty. Opening motor voids the warranty.

PDF Documents
