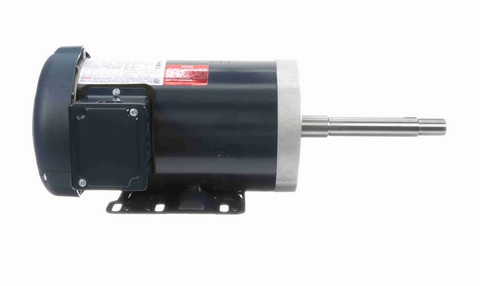

GT3406 Marathon 2 hp 3600 RPM 145JP Frame 230/460V TEFC Marathon Close Coupled Pump Motor

SKU:
GT3406
Weight:
53.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $699.30
Now: $616.90
Adding to cart… The item has been added
  • 2 hp 3600 RPM 5.0/2.5 amps 230/460 Volts 60hz. 3 phase motor
  • NEMA 145JP frame, C-face, Internally threaded JP shaft
  • Service Factor = 1.15, Overload protection = None
  • Reversible, Rigid Base Mount, Ball bearings, Class F insulation
  • One Year Manufacture Warranty

Designed for continuous duty service on close coupled pumps. Motor has rigid base with JP shaft. TEFC = Totally Enclosed Fan Cooled, Wiring diagram on motor name plate. 145TTFR16014
