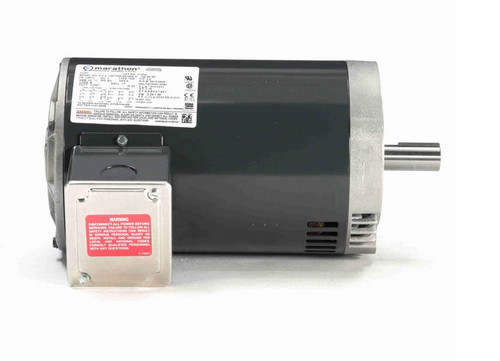

C103A Marathon 3 hp 3600 RPM 3-Phase 145TC Frame ODP (no base) 230/460V Marathon Motor

SKU:
C103A
Weight:
58.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $616.40
Now: $546.20
Adding to cart… The item has been added
  • 3 hp 3600 RPM, 7.6/3.8 amps 230/460 Volts 60hz. 3-Phase
  • NEMA 145TC frame, C-face, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15, Overload protection = None
  • No Base, Reversible, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.

Marathon Model: 145TTDR16319
Replaces Leeson C145T34DC17A, 122163.00
