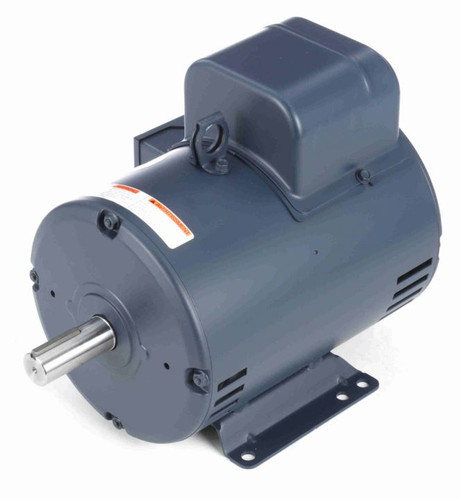

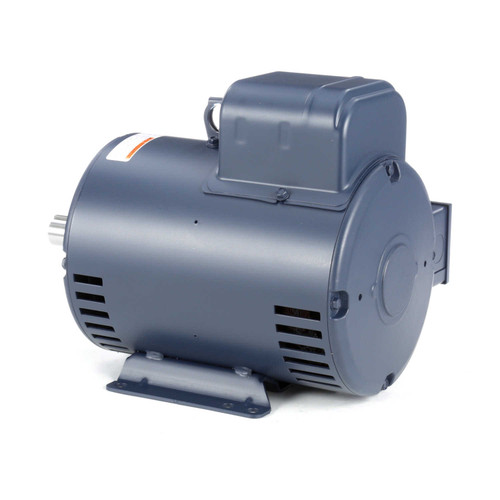

5 hp 3450 RPM 184T Frame ODP 208-230V Leeson Electric Motor # 131616

Part #
131616
Manufacturer
Leeson
Weight
87.00 LBS
Shipping
Free Shipping
Price:
$532.82 RRP:

Description

  • 5 hp 3450 RPM, 22.0 amps, 208-230V 60hz.; Single Phase
  • Open Drip Proof - Ball Bearings - Service Factor 1.15
  • Ball Bearings - Electrically Reversible; No Overload Protection
  • NEMA 184T Frame - Shaft: 1 1/8" x 2 3/4"
  • Capacitor Start/Capacitor Run

Standard 5hp general purpose Electric motor. Applications: Air Compressors, sprayers and many other applications. If you need to replace a 3 phase, 5hp Electric motor to a single phase motor, this will work Fine. Motor has standard 184T flat mounting base. Overall Length = 14.69" 1 Year manufacture warranty.
