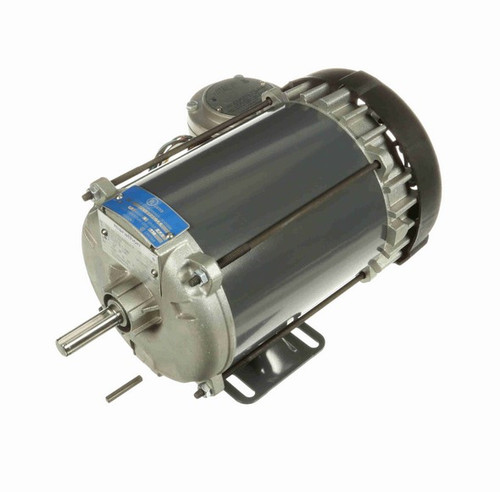

G654A Marathon 1/2 hp 1800 RPM 115/208-230V Explosion Proof 56 Frame EPFC (rigid base) Motor

SKU:: G654A
UPC:
Weight:: 29.00 LBS
Width:: 10.00 (in)
Height:: 11.00 (in)
Depth:: 17.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 115/208/230V
Horsepower:: 1/2 HP
RPM:: 1800
Phase:: Single Phase
Frame:: 56
Enclosure:: EPFC
Hertz:: 60 Hz
Amperage:: 4.4 Amps
Bearings:: Ball Bearings
Service Factor:: 1.0
Insulation Class:: Class B
Mounting:: Rigid Base

Current Stock:

Was: $571.67

Now: $498.07

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

G654A Marathon 1/2 hp 1800 RPM 115/208-230V Explosion Proof 56 Frame EPFC (rigid base) Motor

The Marathon G654A is a 1/2 horsepower, explosion-proof single-phase motor designed for hazardous environments. It replaces Leeson 111084.00 and A6C17XB22H models, making it ideal for industrial applications requiring reliable, explosion-proof operation.

Key Specifications

Horsepower: 1/2 hp
RPM: 1800
Voltage: 115/208-230 V, 60 Hz
Amperage: 8.8/4.2-4.4 A
Enclosure: Explosion-Proof Fan-Cooled (EPFC)
Frame / Diameter: NEMA Rolled Steel 56 Frame
Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, keyed shaft
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for stable installation and includes a capacitor start/induction run design for efficient operation. It is equipped with Class B insulation and automatic overload protection. The shaft includes a keyway, and the wiring diagram is provided on the motor nameplate for ease of wiring. The motor meets explosion-proof standards for Class I Groups C & D and Class II Groups E, F, G with a T3B temperature rating.
