U12S2AC Nidec 1/2 hp 1800 RPM 56C Frame 208-230/460V TEFC 3-Phase Electric Motor

SKU:: U12S2AC
UPC:
Weight:: 19.00 LBS
Width:: 13.00 (in)
Height:: 11.00 (in)
Depth:: 9.00 (in)
Shipping:: Free Shipping
ON SALE:: LIMITED TIME DISCOUNT
Voltage:: 208/230/460V
Horsepower:: 1/2 HP
RPM:: 1800
Phase:: Three Phase
Frame:: 56C
Enclosure:: TEFC
Hertz:: 60 Hz
Amperage:: 1.8/0.9 Amps
Bearings:: Ball Bearings
Service Factor:: 1.25
Insulation Class:: Class F
Mounting:: Rigid Base

Current Stock:

Was: $286.35

Now: $239.95

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

U12S2AC Nidec 1/2 hp 1800 RPM 56C Frame 208-230/460V TEFC 3-Phase Electric Motor

This Nidec U12S2AC is a general-purpose, three-phase electric motor designed for a wide range of industrial applications. It serves as a reliable replacement for motors requiring a 1/2 horsepower rating with a 56C frame and TEFC enclosure.

Key Specifications

Horsepower: 1/2 hp
RPM: 1800
Voltage: 208-230/460 V
Amperage: 1.8-1.8/0.9 A
Enclosure: Totally Enclosed Fan Cooled (TEFC)

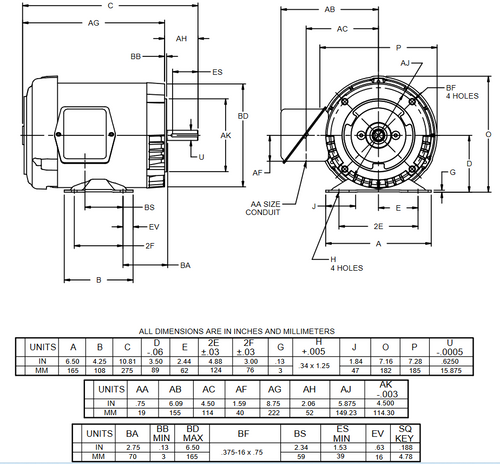

Frame / Diameter: NEMA 56C frame
Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
Bearings: Ball bearings

Product Features & Fitment

The motor features a rigid base mount for stable installation and is reversible to accommodate various rotational requirements. It includes Class F insulation for enhanced thermal protection and comes with a wiring diagram located on the motor nameplate for easy electrical setup. This motor does not include overload protection.
