U7P1DC Nidec 7 1/2 hp 3600 RPM 213TC Frame 208-230/460V TEFC 3-Phase Electric Motor

U7P1DC Nidec 7 1/2 hp 3600 RPM 213TC Frame 208-230/460V TEFC 3-Phase Electric Motor

SKU:
U7P1DC
Weight:
105.00 LBS
Width:
21.00 (in)
Height:
15.00 (in)
Depth:
13.00 (in)
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Voltage:
208/230/460V
Horsepower:
1/2 HP
RPM:
3600
Phase:
Three Phase
Frame:
213TC
Enclosure:
TEFC
Hertz:
60 Hz
Amperage:
17.8/8.9 Amps
Bearings:
Ball Bearings
Service Factor:
1.25
Insulation Class:
Class F
Mounting:
Rigid Base
Was: $1,183.35
Now: $1,056.16
Adding to cart… The item has been added
  • 7 1/2 hp 3600 RPM, 19.9-17.8/8.9 amps  208-230/460 Volts 60 Hz Three Phase Motor

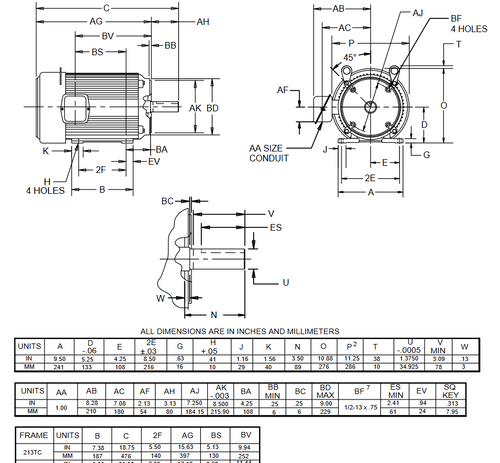

  • NEMA 213TC frame Keyed Shaft 1 1/8" Diameter x 2 1/4"
  • Service Factor: 1.25, Overload protection = None
  • Rigid Base Mount,  Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose C- Face motor can be used for many applications requiring a three phase electric motor.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. DP51

!
