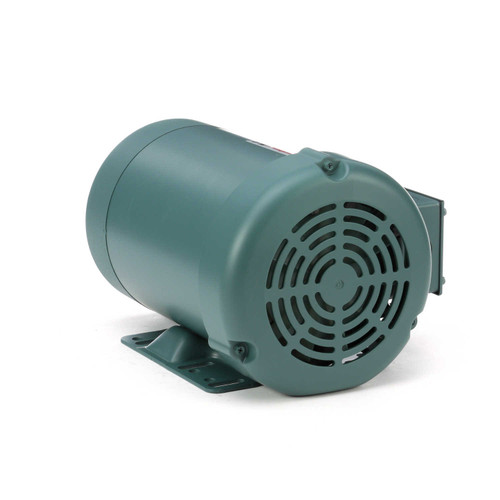

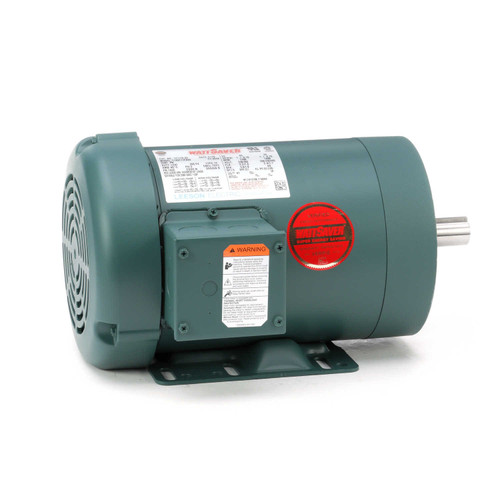

121179.00 Leeson | 1 hp 1800 RPM 145TC Frame TEFC C-Face (Rigid Base) 230/460V

SKU:: 121179
UPC:: 6.92E+11
Weight:: 37.00 LBS
Width:: 20.00 (in)
Height:: 12.00 (in)
Depth:: 12.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 230/460V
Horsepower:: 1 HP
RPM:: 1800
Phase:: Three Phase
Frame:: 145TC
Enclosure:: TEFC
Hertz:: 60 Hz
Amperage:: 3.2/1.6 Amps
Bearings:: Ball Bearings
Service Factor:: 1.15
Insulation Class:: Class F
Mounting:: C-Face

Current Stock:

Was: $815.35

Now: $691.38

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

121179.00 Leeson | 1 hp 1800 RPM 145TC Frame TEFC C-Face (Rigid Base) 230/460V

This Leeson general purpose three-phase electric motor delivers 1 horsepower at 1800 RPM and is designed for various industrial applications. It replaces Leeson model G121286.00 and features a rigid base with a C-face mount for versatile equipment compatibility.

Key Specifications

Horsepower: 1 hp
RPM: 1800
Voltage: 230/460 V
Amperage: 3.2/1.6 A
Enclosure: Totally Enclosed Fan Cooled (TEFC)
Frame / Diameter: NEMA 145TC

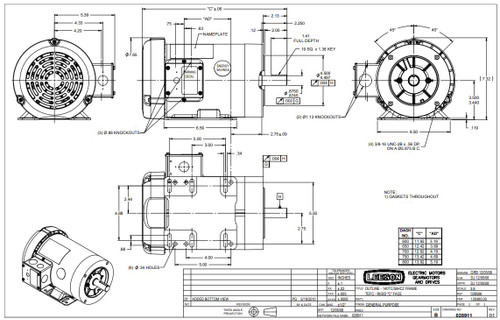

Shaft Dimensions: 7/8" diameter x 2 1/4" length, keyed shaft
Rotation: Reversible
Bearings: Ball bearings

Product Features & Fitment

The motor includes a rigid base mount with a C-face that has threaded bolt holes, allowing easy attachment of pumps or gear heads. The shaft features a keyway for secure coupling. Wiring diagrams are provided on the motor nameplate to assist with installation.
