Condenser Fan Motors

1 hp, 825 RPM, 3.4/7.2-6.8 amps; 460/200-230 volts Shaft 5/8" x 6"; Includes 2.5" resilient mounting rings Motor case Length 11.50"; Ring to Ring Dimension 11.05"; Ball Bearings 12.5MFD 370V Capacitor REQUIRED (Our Part #12.5DV) 40° C Ambient 50"...

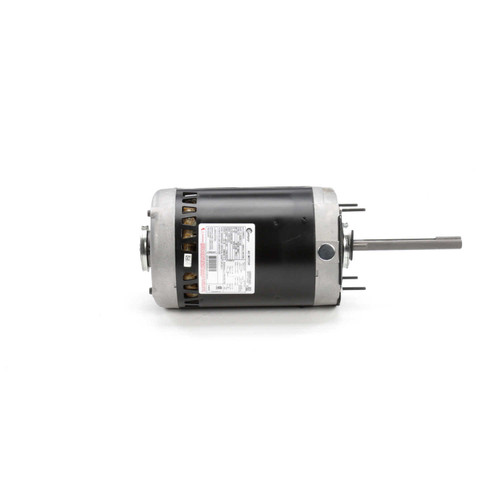

C660V1 Century Condenser Fan Motor 6 1/2" Dia, 3/4 hp, 825 RPM 200-230/460V Single Phase This Century condenser fan motor is designed to replace OEM motors in HVAC condenser units, providing reliable performance for efficient cooling. It is suitable for...

HeatMaster Ultra 80° C Motor 1/3 HP, 825 RPM, 1-Speed, 1.6 amps, 208-230V Rotation = Reversible Shaft: 1/2" x 6 1/2" Motor Diameter 5 5/8" Motor Case Length 5.11" 80° C Ambient Temp Class F Insulation Ball Bearings Totally Enclosed Air Over...

1/3 hp 1075 RPM, 2-Speed, 2.8 amps, 208-230V 1/2" x 6" Shaft; 26" Leads, Class B Insulation; PSC Motor 7.5MFD 370V Capacitor REQUIRED (Our Part #7.5DV) Reversing Plug No hubs 60°C. Ambient Temp; Sleeve Bearings One Year Warranty Condenser-Heat...

1/3 hp 1075 RPM 1-Speed 460/380-420V 1.3 amps Shaft 3.9" x 1/2" Rotation CW shaft end 5.6" Diameter Motor case length 5.312" 36" Leads Sleeve Bearings 10MFD 370V Capacitor REQUIRED (Our Part #10DV) 1 Year mfg warranty Permanent Split Capacitor...

1/3 hp 1075 RPM 1-Speed 208-230V 1.7 amps Shaft 2 3/4" x 1/2" Rotation CW shaft end 5.6" Diameter Motor case length 4.312" 37" Leads Sleeve Bearings 7.5MFD 370V Capacitor REQUIRED (Our Part #7.5DV) 1 Year mfg warranty Permanent Split Capacitor...

X501 Marathon 3/4 hp 3-phase 200-230/460V 1075 RPM OPAO 56Y Frame Condenser Fan Motor This Marathon condenser fan motor is designed for use in air conditioning coolant condenser units, typically installed outdoors. It serves as a reliable replacement...

X533 Marathon 1/2 hp 3-phase 208-230/460V 1075 RPM OPAO 56Z Frame Condenser Fan Motor This Marathon condenser fan motor is designed for use in air conditioning condenser units, typically installed outdoors. It serves as a reliable replacement motor for...

1 hp 1075 RPM 1-Speed 575V 2.2 amps Shaft 5/8" x 6.0" Rotation: Reversible 5.6" Diameter Motor case length 7.062 Ball bearings Water Slinger (fan canopy) covers one end of motor 25MFD 370V Capacitor REQUIRED (Our Part #25DV) 1 Year mfg...

1/6 hp 1075 RPM, 1.0 amps 208-230V Volts 60 Hz PSC Motor NEMA 5.6" Dia. Frame, Rolled Steel, Flat Shaft 1/2" Diameter x 4 1/2" Overload Protection: Auto Stud Mount, Ball Bearings, Class F Insulation, Rev 1 Year Manufacture Warranty Condenser Fan Motor...

1862H Nidec 1/2 hp 1075 RPM 208-230V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor This 1862H Nidec condenser motor is a 1/2 horsepower, single-speed PSC motor designed for use in HVAC condenser fan applications. It is built to replace standard...
