Condenser Fan Motors

1/2 hp 1075 RPM 1-Speed 460V 1.3 amps Shaft 2 1/2" x 1/2" Rotation CW shaft end 5.6" Diameter Motor case length 5.81" Terminal block connector for wires Ball Bearings Vertical shaft up 10MFD 370V Capacitor REQUIRED (Our Part #10DV) 1 Year mfg...

1/4 hp 1625 RPM 1-Speed 575V 0.7 amps 50/60hz. Shaft 1/2" x 3.1" Rotation: CCW shaft end 5.6" Diameter Motor case length 4.8" Sleeve bearings Band Mount 5MFD 370V Capacitor REQUIRED (Our Part #5DV) 1 Year mfg warranty Permanent Split Capacitor Motor...

1861H Nidec 1/3 hp 1075 RPM 208-230V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor This Nidec 1861H condenser fan motor is designed for HVAC applications, providing reliable performance in hot environments. It serves as a direct replacement for 1/3...

3/4 hp 1075 RPM 1-Speed 208-230V 4.7 amps Shaft 1/2" x 5" Rotation = Reversible 5.6" Diameter Motor case length 5.8" Sleeve bearings 10MFD 370V Capacitor REQUIRED (Our Part #10DV) 1 Year mfg warranty Permanent Split Capacitor Motor. Automatic Overload...

1873H Nidec 1/6 hp 825 RPM 208-230V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor This Nidec 1/6 horsepower condenser motor is designed for HVAC condenser fan applications, providing reliable performance in hot environments. It serves as a direct...

1903 Nidec | 1/5 hp 825 RPM 1-Speed 200-230V 5.6" Condenser Motor This 1/5 horsepower condenser motor is designed as a direct replacement for Trane A.C. condenser fan motors, including models MOT13693 and D156744P01. It is ideal for HVAC applications...

3/4 hp 1100 RPM, 4.8/2.5 amps 208-230/460V Volts 60 Hz PSC Motor NEMA 6.5" Dia. Frame, Rolled Steel, Flat Shaft 5/8" Diameter x 6" long Service Factor = 1, Overload Protection: Auto Stud Mount, Ball Bearings, Class B Insulation, Rev 1 Year Manufacture...

3846 Nidec | 1/4 hp 1075 RPM 1-Speed 230V; 5.6" Condenser Motor This Nidec 1/4 horsepower condenser motor operates at 1075 RPM with a single speed and 230V power supply. Designed for HVAC condenser applications, it serves as a reliable replacement motor...

1/3 hp 1625 RPM 1-Speed 230V 1.8 amps Shaft 1/2" x 5" Rotation: Reversible 5.6" Diameter Motor case length 4.6" Sleeve bearings 5MFD 370V Capacitor REQUIRED (Our Part #5DV) 1 Year mfg warranty Permanent Split Capacitor Motor. Automatic Overload...

1/2 hp 1075 RPM 1-Speed 230V 3.1 amps Shaft 1/2" x 5" Rotation: Reversible 5.6" Diameter Motor case length 6.0" Ball bearings Resilient Base Mount 7.5MFD 370V Capacitor REQUIRED (Our Part #7.5DV) 1 Year mfg warranty Permanent Split Capacitor Motor...

1 hp 1080 RPM 1-Speed 200V 5.9 amps Shaft 4.45" x 5/8" Rotation CW shaft end 5.6" Diameter Motor case length 6.0" 68" Leads Ball Bearings 30MFD 370V Capacitor REQUIRED (Our Part #30DV) 1 Year mfg warranty Permanent Split Capacitor Motor. Automatic...

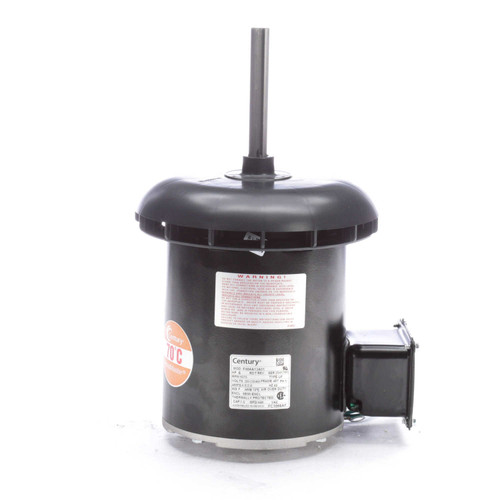

FC1066AF Century Condenser Fan Motor The FC1066AF is a reliable condenser fan motor designed to replace Century model FC1066A. It is ideal for HVAC applications requiring efficient and consistent airflow in condenser units. Key...
