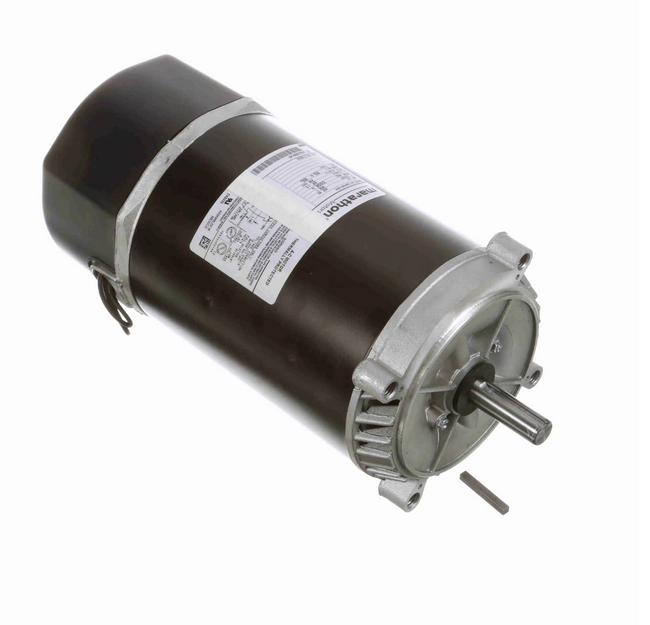

Marathon/Leeson Jet Pump Motors

J057 Marathon 1 hp Basic Jet Pump Motor 3600 RPM 115/208-230V ODP 56J Frame (rigid base) This Marathon 1 horsepower jet pump motor is designed for spa pump applications and is not suitable for pool use due to the absence of a suction cut-off feature. It...

C1464 Marathon 1 hp 2-Compartment Jet Pump Motor 3600 RPM 115/230V ODP 56J Frame (rigid base) This Marathon 1 hp jet pump motor is designed for spa pump applications, featuring a two-compartment design for easy servicing. It is not suitable for pool use...

3/4 hp 3600 RPM, 11.2/5.6-5.3 amps, 115/208-230 volts, Capacitor Start / Induction Run NEMA 56J Frame, 5'8" dia. by 1-5/8" long threaded stainless steel shaft, 60 Hz Service Factor: 1.5, Overload protection: Auto No base, CW rotation viewed opposite...

3/4 hp 3600 RPM, 2.6-2.6/1.3 amps, 208-230/460 volts, 3 phase NEMA 56J Frame, 5'8" dia. by 1-5/8" long threaded stainless steel shaft, 60 Hz Service Factor: 1.5, Overload protection: None No base, Reversible rotation, Ball Bearings; Class B Insulation 1...

3/4 hp 3600 RPM, 12.6/6.3 amps, 115/230 volts, Capacitor start / Induction run NEMA 56Y Square Flange Frame, 5'8" dia. by 1-5/8" long threaded shaft, 60 Hz Service Factor: 1.65, Overload protection: Auto No base, CW rotation viewed opposite shaft end,...

3 hp 3600 RPM, 29.4/14.7 amps, 115/230 volts, Capacitor Start / Capacitor Run NEMA 56C Frame, 5'8" dia. by 1-5/8" long keyed shaft, 60 Hz Service Factor: 1.15, Overload protection: Auto No base, Reversible rotation, Ball Bearings; Class B Insulation 1...

J062 Marathon 3/4 hp 3-Phase Jet Pump Motor 3600 RPM 208-230/460V TEFC 56J Frame (rigid base) This Marathon 3/4 horsepower jet pump motor is designed for spa pump applications and is not suitable for pool use due to the absence of suction cut-off. It...

J065A Marathon 2 hp 3-Phase Jet Pump Motor 3600 RPM 230/460V TEFC 56J Frame (Rigid Base) The J065A Marathon motor is a 2 horsepower, 3-phase jet pump motor designed for spa pump applications. It replaces Leeson models C6T34FK135B, 119454.00, and 113031...

J056 Marathon 3/4 hp Basic Jet Pump Motor 3600 RPM 115/208-230V ODP 56J Frame (rigid base) This Marathon 3/4 horsepower jet pump motor is designed for spa pump applications and serves as a reliable replacement motor. It features a rigid base and is not...

J066A Marathon 3 hp 3-Phase Jet Pump Motor 3600 RPM 230/460V TEFC 56J Frame (rigid base) The Marathon J066A is a 3 horsepower, 3-phase jet pump motor designed for spa pump applications. It replaces Leeson model 119457.00 and features a totally enclosed...

1/2 hp 3600 RPM, 7.6/3.8 amps, 115/230 volts, Capacitor Start / Induction Run NEMA 56C Frame, 5'8" dia. by 1-5/8" long keyed shaft, 60 Hz Service Factor: 1.6, Overload protection: Auto No base, Reversible rotation, Ball Bearings; Class B Insulation 1...
