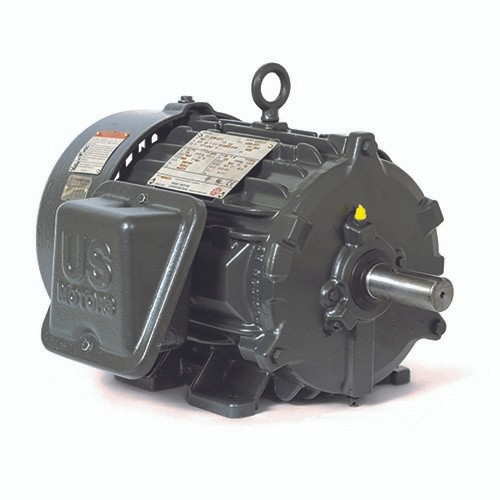

CD10P1E Nidec 10 hp 3600 RPM 215T Frame (Rigid Base) 230/460V TEFC 3-Phase World Electric Motor
CD10P1E Nidec 10 hp 3600 RPM 215T Frame (Rigid Base) 230/460V TEFC 3-Phase World Electric Motor
CD10P1E Nidec 10 hp 3600 RPM 215T Frame (Rigid Base) 230/460V TEFC 3-Phase World Electric Motor
CD10P1E Nidec 10 hp 3600 RPM 215T Frame (Rigid Base) 230/460V TEFC 3-Phase World Electric Motor

Nidec

CD10P1E Nidec 10 hp 3600 RPM 215T Frame (Rigid Base) 230/460V TEFC 3-Phase World Electric Motor

(No reviews) Write a Review
$1,186.80
$1,059.50
SKU CD10P1E
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 10 HP
RPM 3600
Phase Three Phase
Frame 215T
Enclosure TEFC
Hertz 50/60 Hz
Amperage 23.5/11.8 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Inverter Duty
Adding to cart… The item has been added
Description
  • 10 hp 3600 RPM, 23.5/11.8 amps 230/460 Volts 50/60 Hz Three Phase Motor
  • NEMA 213T Cast Iron frame Keyed Shaft 1 3/8" Diameter x 3 3/8"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount, Regreasable Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

Hostile duty three phase motor designed for chemically corrosive environments with either 50 or 60 Hz power. Inverter Duty. Self-certified Class 1, Division 2, Groups A, B, C, D. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. GE26

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 10 HP
RPM 3600
Phase Three Phase
Frame 215T
Enclosure TEFC
Hertz 50/60 Hz
Amperage 23.5/11.8 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Inverter Duty
!
