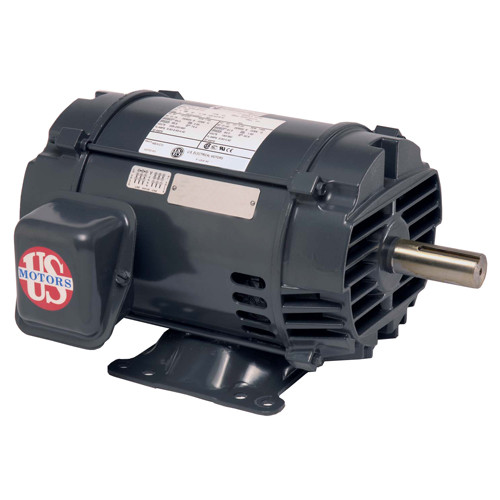

D30V3B Nidec 30 hp 1200 RPM 326T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor
D30V3B Nidec 30 hp 1200 RPM 326T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor
D30V3B Nidec 30 hp 1200 RPM 326T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor
D30V3B Nidec 30 hp 1200 RPM 326T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor

Nidec

D30V3B Nidec 30 hp 1200 RPM 326T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor

(No reviews) Write a Review
$3,650.10
$3,258.53
SKU D30V3B
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 30 HP
RPM 1200
Phase Three Phase
Enclosure ODP
Hertz 60 Hz
Amperage 70.0/35.0 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description

    30 hp 1200 RPM, 70.0/35.0 amps 230/460 Volts 60 Hz Three Phase Motor
    NEMA 326T Rolled Steel Frame with Cast Iron End Bells, Keyed Shaft 2 1/8" Diameter x 5 1/4"
    Service Factor: 1.15 Overload protection = None
    C-Face Mount, Ball Bearings, Class F Insulation, Reversible
    1 Year Manufacture Warranty

Speed controllable motor for material handling, pumps, and fans, in normal environments. 5:1 speed range at constant torque, 20:1 at variable torque. NEMA design B. Brake provisions. Wiring diagram on motor name plate. ODP = Open Drip-Proof. HK87

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 30 HP
RPM 1200
Phase Three Phase
Enclosure ODP
Hertz 60 Hz
Amperage 70.0/35.0 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
