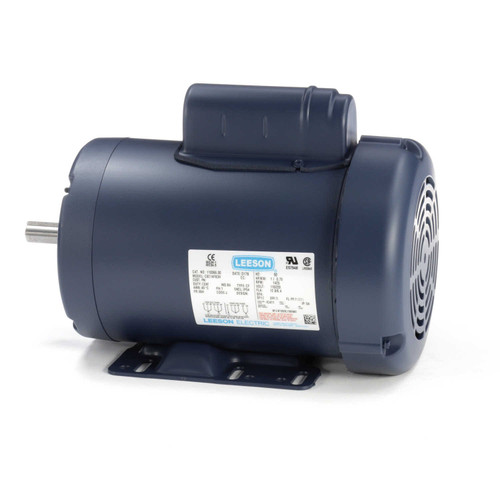

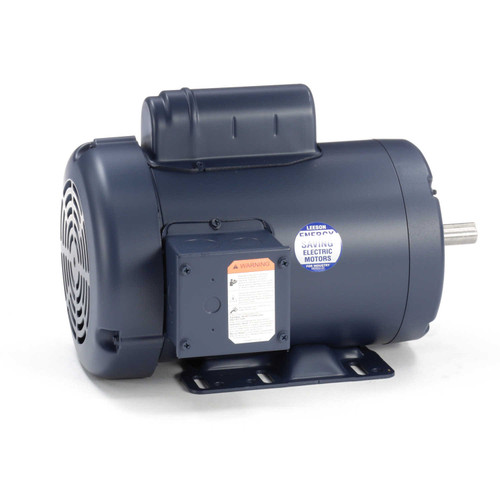

1 hp 1425 RPM 56H Frame TEFC Rigid Base 110/220V 50hz. Leeson # 110066

Part #
110066
Manufacturer
Leeson
Weight
43.00 LBS
Shipping
Free Shipping
Price:
$405.41 RRP:

Description

  • 1 hp 1425 RPM, 14.0/7.0 amps, 110/220V 50 hz. (will not operate @ 60hz)
  • NEMA 56H Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class B Insulation
  • 1 Year Manufacture Warranty

This motor is rated for 50 hz. Power systems and will not operate on 60 hz. Operation on 60 hz. Will damage the motor.
