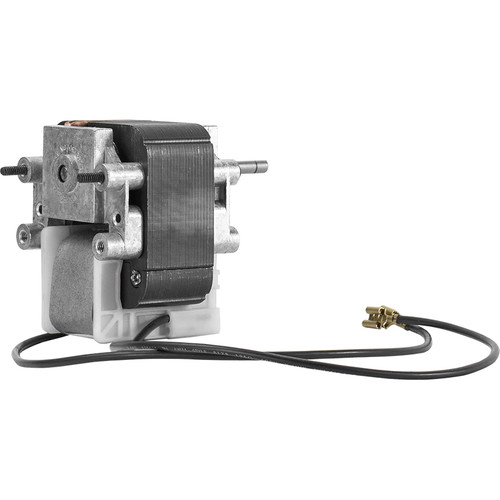

8767-8036 QMark Marley Electric Motor Aftermarket Replacement (S345000823)
This direct aftermarket replacement motor is designed for QMark Marley applications, serving as a suggested substitute for part number S345000823 and compatible with A2540T, Model 112-1. It is ideal for HVAC and industrial motor systems requiring reliable performance.
Key Specifications
- RPM: 3000
- Voltage: 240 Volts
- Amperage: 0.55 Amps
- Frame / Diameter: C Frame Style
- Shaft Dimensions: 7/32" diameter x 1-1/4" length
- Rotation: Counterclockwise (CCW) Shaft End
- Iron Stack: 1-1/8"
Product Features & Fitment
Manufactured in the USA, this motor features a C frame style suitable for direct replacement installations. The shaft rotation and dimensions match original equipment specifications to ensure proper fit and function in compatible HVAC units.
Cross Reference
- S345000823 for A2540T, Model 112-1
Warranty
1 Year Manufacturer Warranty
