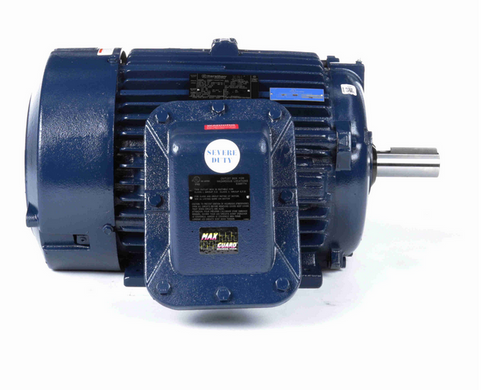

E507A Marathon 20 hp 1200 RPM 3-Phase 286T Frame TEFC (rigid base) 230/460V Marathon Motor

E507A Marathon 20 hp 1200 RPM 3-Phase 286T Frame TEFC (rigid base) 230/460V Marathon Motor

SKU:
E507
Availability:
Motor may have "A" Suffix (E507A)
Weight:
593.00 LBS
Width:
20.00 (in)
Height:
32.00 (in)
Depth:
38.00 (in)
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Voltage:
230/460V
Horsepower:
20 HP
RPM:
1200
Phase:
Three Phase
Frame:
286T
Enclosure:
TEFC
Hertz:
60 Hz
Amperage:
53.5/26.8 Amps
Bearings:
Ball Bearings
Service Factor:
1.15
Insulation Class:
Class F
Mounting:
Rigid Base
Was: $4,273.85
Now: $3,875.00
Adding to cart… The item has been added



  • 20 hp 1200 RPM, 53.5/26.8 amps 230/460 Volts 60 Hz. 3-Phase
  • NEMA 286T cast iron frame, Keyed Shaft 1 7/8" Diameter x 4 5/8"
  • Service Factor: 1.15, Overload protection = Thermostat
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty

Explosion-Proof three phase cast iron electric motor. EXP PROOF CL I GR C&D CL II GR F&G T3B. Shaft has keyway. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled.  286TTGN16577

!
