FF25E2AS Nidec 25 hp 1800 RPM 208-230/460V ODP 284TS (Rigid Base) 3-Phase Fire Pump Motor

FF25E2AS Nidec 25 hp 1800 RPM 208-230/460V ODP 284TS (Rigid Base) 3-Phase Fire Pump Motor

SKU:
FF25E2AS
Weight:
300.00 LBS
Width:
26.00 (in)
Height:
17.00 (in)
Depth:
19.00 (in)
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Voltage:
208/230/460V
Horsepower:
25 HP
RPM:
1800
Phase:
Three Phase
Enclosure:
ODP
Hertz:
60 Hz
Amperage:
60.0/30.0 Amps
Bearings:
Ball Bearings
Service Factor:
1.15
Insulation Class:
Class F
Mounting:
Rigid Base
Was: $2,723.20
Now: $2,430.99
Adding to cart… The item has been added
  • 25 hp 1800 RPM, 66.0-60.0/30.0 amps 208-230/460 Volts 60 Hz Three Phase Motor

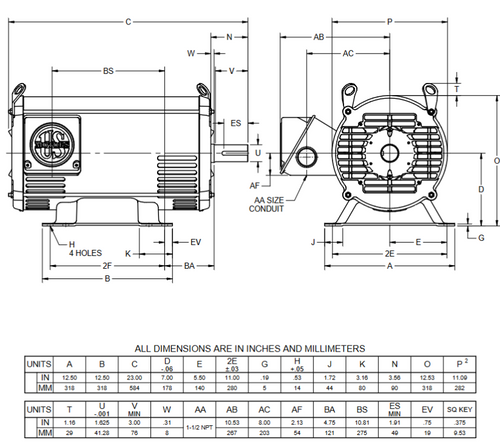

  • NEMA 284TS Rolled Steel Frame, Keyed Shaft 1 5/8" Diameter x 4"
  • Service Factor: 1.15 Overload protection = None
  • C-Face Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

For fire pump applications per NFPA 20 where contaminants are minimal. Wiring diagram on motor name plate. ODP = Open Drip Proof. AD08

!
