PD6002 | 1/4 hp 1725 RPM 48 Frame 115/230V Belt Drive Furnace Motor Ball Brg

SKU:: PD6002
UPC:
Availability:: IN STOCK
Weight:: 14.00 LBS
Width:: 14.00 (in)
Height:: 10.00 (in)
Depth:: 10.00 (in)
Shipping:: Free Shipping
ON SALE:: LIMITED TIME DISCOUNT & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 115/230V
Horsepower:: 1/4 HP
RPM:: 1725
Frame:: 48 Frame
Hertz:: 60 Hz
Amperage:: 5.2/2.6 Amps
Bearings:: Ball Bearings
Service Factor:: 1.35
Insulation Class:: Class B
Duty:: Continuous Duty

Current Stock:

Was: $217.35

Now: $179.95

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

PD6002 | 1/4 hp 1725 RPM 48 Frame 115/230V Belt Drive Furnace Motor Ball Bearing

This 1/4 horsepower belt drive furnace blower motor is designed for residential HVAC applications and serves as a reliable replacement for compatible furnace blower motors. It operates at 1725 RPM with reversible rotation, ensuring versatile installation options.

Key Specifications

Horsepower: 1/4 hp
RPM: 1725
Voltage: 115/208-230 V, 60 Hz
Amperage: 5.2/2.6 A
Enclosure: Open Drip Proof
Frame / Diameter: 48Z Frame

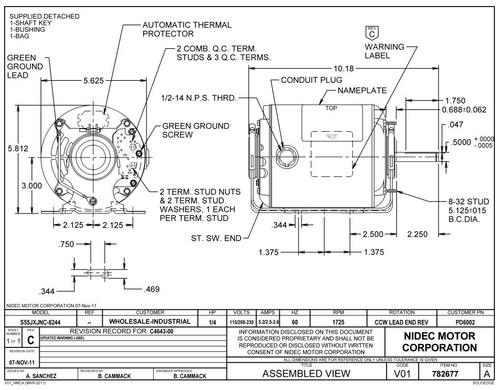

Shaft Dimensions: 1/2" x 2.25" diameter, 3" shaft height
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

The motor features a resilient cradle base for stable mounting and includes quick connect terminals for easy wiring. It supports continuous duty with automatic overload protection and Class B insulation. A shaft adapter for 5/8" shafts is available, and rotation direction can be changed quickly to suit installation requirements.
