U3V3BC Nidec 3 hp 1200 RPM 213TC (Rigid Base) 230/460V TEFC Inverter-Duty 3-Phase Motor

SKU:: U3V3BC
UPC:
Availability:: Subject to Availability
Weight:: 115.00 LBS
Width:: 22.00 (in)
Height:: 15.00 (in)
Depth:: 17.00 (in)
Shipping:: Calculated at Checkout
ON SALE:: LIMITED TIME DISCOUNT
Voltage:: 230/460V
Horsepower:: 3 HP
RPM:: 1200
Phase:: Three Phase
Enclosure:: TEFC
Hertz:: 60 Hz
Amperage:: 8.6/4.3 Amps
Bearings:: Ball Bearings
Speeds:: 1-Speed
Service Factor:: 1.15
Insulation Class:: Class F
Mounting:: Rigid Base

Current Stock:

Was: $952.20

Now: $849.97

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

U3V3BC Nidec 3 hp 1200 RPM 213TC (Rigid Base) 230/460V TEFC Inverter-Duty 3-Phase Motor

This Nidec 3 horsepower, 1200 RPM inverter-duty motor is designed for industrial applications such as material handling, cranes, and machine tools. It replaces standard motors requiring a speed-controllable, totally-enclosed fan-cooled (TEFC) solution with a rigid base and C-face mounting.

Key Specifications

Horsepower: 3 hp
RPM: 1200
Voltage: 230/460 V
Amperage: 8.6/4.3 A
Enclosure: TEFC (Totally-Enclosed Fan-Cooled)

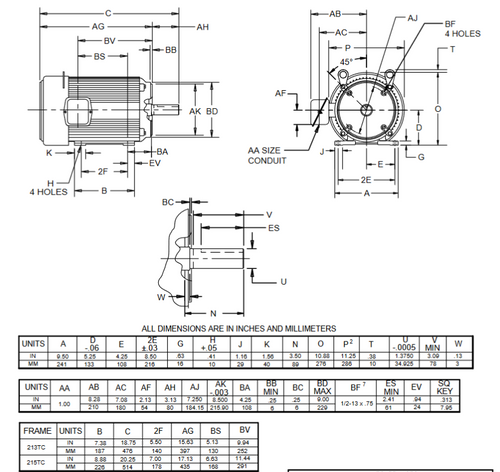

Frame / Diameter: NEMA 213TC Extruded Aluminum Frame
Shaft Dimensions: 1 3/8" Diameter x 3 3/8" Length, Keyed
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base with C-face mounting and brake provisions, making it suitable for direct coupling to equipment. It includes a wiring diagram on the nameplate for easy installation. The motor has Class F insulation and a service factor of 1.15 but does not include overload protection. It supports a 5:1 speed range at constant torque, complying with NEMA design B standards.
