U5V1BC Nidec 5 hp 3600 RPM 184TC (Rigid Base) 230/460V TEFC Inverter-Duty 3-Phase Motor

U5V1BC Nidec 5 hp 3600 RPM 184TC (Rigid Base) 230/460V TEFC Inverter-Duty 3-Phase Motor

SKU:
U5V1BC
Weight:
75.00 LBS
Width:
19.00 (in)
Height:
13.00 (in)
Depth:
15.00 (in)
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Voltage:
230/460V
Horsepower:
5 HP
RPM:
3600
Phase:
Three Phase
Enclosure:
TEFC
Hertz:
60 Hz
Amperage:
12.3/6.1 Amps
Bearings:
Ball Bearings
Speeds:
1-Speed
Service Factor:
1.15
Insulation Class:
Class F
Mounting:
Rigid Base
Was: $914.25
Now: $816.62
Adding to cart… The item has been added
  • 5 hp 3600 RPM, 12.3/6.1 amps 230/460 Volts 60 Hz Three Phase Motor
  • NEMA 184TC Extruded Aluminum Frame with Cast Aluminum End Bells, Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.15 Overload protection = None
  • C-Face Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

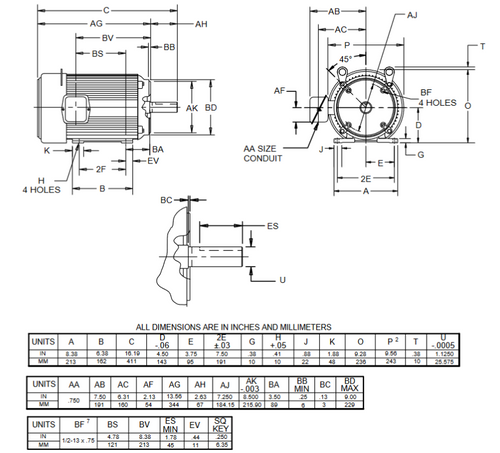

Speed controllable C-Face motor for material handling, cranes and machine tools. 5:1 speed range at constant torque. NEMA design B. Brake provisions. Wiring diagram on motor name plate. TEFC = Totally-Enclosed Fan-Cooled. HA44

!
