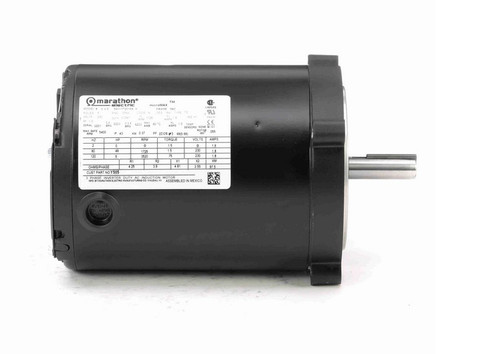

Y505 Marathon 1/2 hp 1800 RPM 3-Phase 56C Frame TENV (no base) 230V Marathon Motor

SKU:
Y505
Weight:
24.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $372.60
Now: $325.10
Adding to cart… The item has been added
  • 1/2 hp 1800 RPM, 1.8 amps 230 Volts 60 Hz. 3-Phase
  • NEMA 56C frame, C-face, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.0, Overload protection = None
  • No Base, Reversible, Ball Bearings, Class H Insulation
  • 1 Year Manufacture Warranty

Inverter (Vector) duty three phase electric motor with a C-face mount. 1000:1 constant torque. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. 056H17T2016
