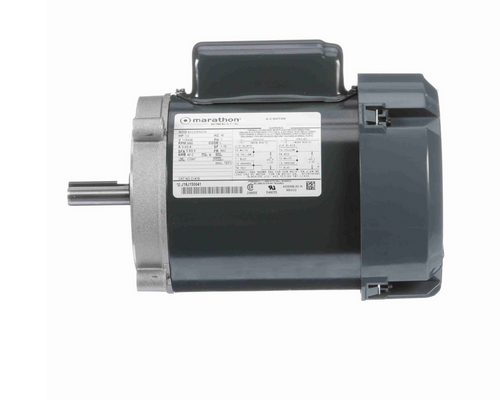

C1419 Marathon 1/3 hp 3600 RPM 56C Frame TEFC (no base) 115/230V Marathon Motor

SKU:
C1419
Weight:
14.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $296.20
Now: $256.40
Adding to cart… The item has been added
  • 1/3 hp 3600 RPM, 5.6/2.8 amps 115/230 Volts 60hz. Capacitor Start Induction Run Motor

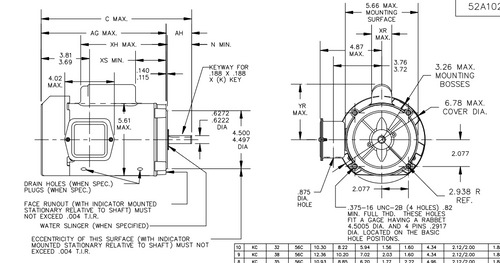

  • NEMA 56C frame, C-face, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15, Overload protection = None
  • No Base, Reversible, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled.

Marathon # 5KC33FN31
Replaces Leeson 102870.00, C4C17FC32B
