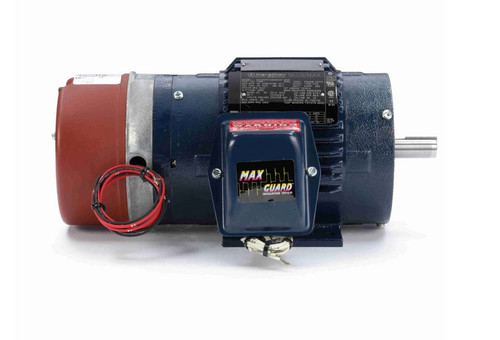

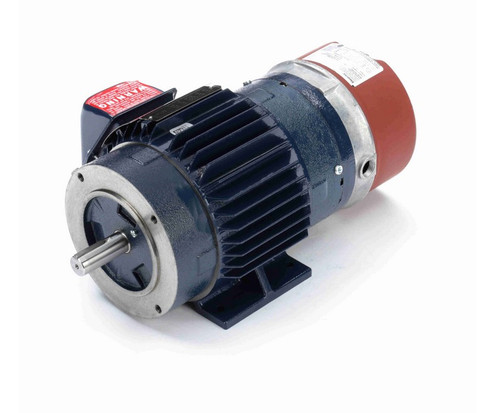

Y986 Marathon 1 hp 1800 RPM 3-Phase 143TC Frame TENV (rigid base) 230/460V Marathon Motor

SKU:
Y986
Weight:
72.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $1,945.50
Now: $1,653.60
Adding to cart… The item has been added
  • 1 hp 1800 RPM, 3.0/1.5 amps 230/460 Volts 60 Hz 3-Phase, Brake attached
  • NEMA 143TC Cast Iron frame, C-face, Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.0, Overload protection = None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty

Inverter (Vector) duty three phase electric motor with a C-face mount. 2000:1 constant torque. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. 143THTN8036
