D50V2B Nidec 50 hp 1800 RPM 326T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor

SKU:: D50V2B
UPC:
Weight:: 460.00 LBS
Width:: 31.00 (in)
Height:: 21.00 (in)
Depth:: 24.00 (in)
Shipping:: Calculated at Checkout
ON SALE:: LIMITED TIME DISCOUNT
Voltage:: 230/460V
Horsepower:: 50 HP
RPM:: 1800
Phase:: Three Phase
Enclosure:: ODP
Hertz:: 60 Hz
Amperage:: 113/56.0 Amps
Bearings:: Ball Bearings
Speeds:: 1-Speed
Service Factor:: 1.15
Insulation Class:: Class F
Mounting:: Rigid Base

Current Stock:

Was: $3,405.15

Now: $3,040.60

Quantity:

Adding to cart… The item has been added

Description
Compliance & Restrictions

    50 hp 1800 RPM, 113/56.0 amps 230/460 Volts 60 Hz Three Phase Motor

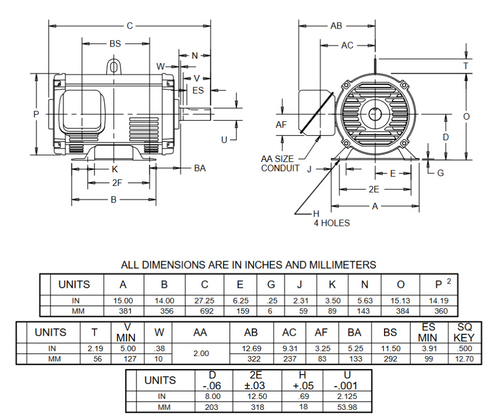

    NEMA 326T Rolled Steel Frame with Cast Iron End Bells, Keyed Shaft 2 1/8" Diameter x 5 1/4"
    Service Factor: 1.15 Overload protection = None
    C-Face Mount, Ball Bearings, Class F Insulation, Reversible
    1 Year Manufacture Warranty

Speed controllable motor for material handling, pumps, and fans, in normal environments. 5:1 speed range at constant torque, 20:1 at variable torque. NEMA design B. Brake provisions. Wiring diagram on motor name plate. ODP = Open Drip-Proof. HJ92
