U1V2BC Nidec 1 hp 1800 RPM 143TC (Rigid Base) 230/460V TEFC Inverter-Duty 3-Phase Motor

U1V2BC Nidec 1 hp 1800 RPM 143TC (Rigid Base) 230/460V TEFC Inverter-Duty 3-Phase Motor

SKU:
U1V2BC
Weight:
45.00 LBS
Width:
16.00 (in)
Height:
10.00 (in)
Depth:
13.00 (in)
Shipping:
Free Shipping
ON SALE:
LIMITED TIME DISCOUNT
Voltage:
230/460V
Horsepower:
1 HP
RPM:
1800
Phase:
Three Phase
Enclosure:
TEFC
Hertz:
60 Hz
Amperage:
3.0/1.5 Amps
Bearings:
Ball Bearings
Speeds:
1-Speed
Service Factor:
1.15
Insulation Class:
Class F
Mounting:
Rigid Base
Was: $470.35
Now: $420.10
Adding to cart… The item has been added
  • 1 hp 1800 RPM, 3.0/1.5 amps 230/460 Volts 60 Hz Three Phase Motor

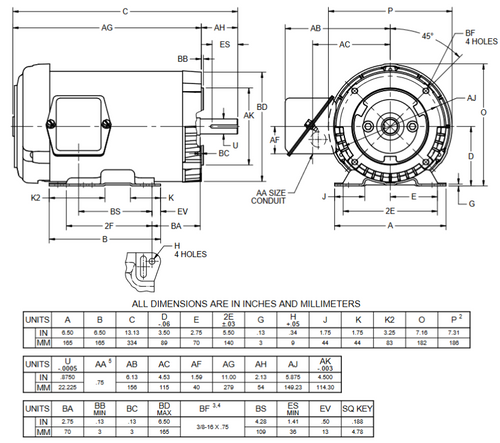

  • NEMA 143TC Rolled Steel Frame with Cast Aluminum End Bells, Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.15 Overload protection = None
  • C-Face Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

Speed controllable C-Face motor for material handling, cranes and machine tools. 5:1 speed range at constant torque. NEMA design B. Brake provisions. Wiring diagram on motor name plate. TEFC = Totally-Enclosed Fan-Cooled. HA34

!
