X32P2B Nidec 1 1/2 hp 1800 RPM 145T Frame (Rigid Base) 230/460V TEFC 3-Phase Hazardous Duty Motor

SKU:: X32P2B
UPC:
Weight:: 80.00 LBS
Width:: 19.00 (in)
Height:: 10.00 (in)
Depth:: 12.00 (in)
Shipping:: Calculated at Checkout
ON SALE:: LIMITED TIME DISCOUNT
Voltage:: 230/460V
Horsepower:: 1/2 HP
RPM:: 1800
Phase:: Three Phase
Frame:: 145T
Enclosure:: TEFC
Hertz:: 60 Hz
Amperage:: 4.3/2.1 Amps
Bearings:: Ball Bearings
Service Factor:: 1.15
Insulation Class:: Class F
Mounting:: Rigid Base

Current Stock:

Was: $756.70

Now: $675.97

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

X32P2B Nidec 1 1/2 hp 1800 RPM 145T Frame (Rigid Base) 230/460V TEFC 3-Phase Hazardous Duty Motor

This Nidec X32P2B motor is a general-purpose, hazardous duty motor designed for Division 1 locations, suitable for Class 1 Group D and Class 2 Group FG environments. It replaces standard motors requiring a rugged, reliable solution for industrial applications demanding 1 1/2 horsepower and 1800 RPM performance.

Key Specifications

Horsepower: 1 1/2 hp
RPM: 1800
Voltage: 230/460V
Amperage: 4.3/2.1 amps
Enclosure: Totally Enclosed Fan Cooled (TEFC)

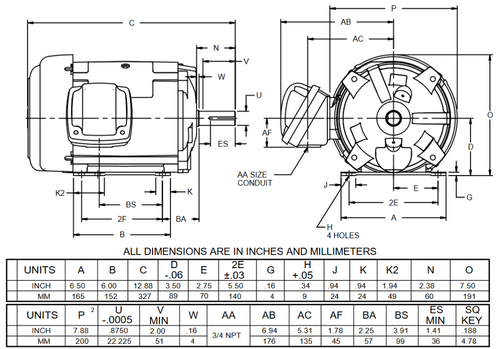

Frame / Diameter: NEMA 145T Cast Iron frame
Shaft Dimensions: Keyed shaft, 7/8" diameter x 2 1/4" length
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base mount for stable installation and is built with Class F insulation for enhanced thermal protection. It includes a wiring diagram on the nameplate to facilitate proper electrical connections. This motor does not include overload protection and is suitable for three-phase 60 Hz power systems.
