D10V2B Nidec 10 hp 1800 RPM 215T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor

D10V2B Nidec 10 hp 1800 RPM 215T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor

SKU:
D10V2B
Weight:
105.00 LBS
Width:
20.00 (in)
Height:
14.00 (in)
Depth:
16.00 (in)
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Voltage:
230/460V
Horsepower:
10 HP
RPM:
1800
Phase:
Three Phase
Enclosure:
ODP
Hertz:
60 Hz
Amperage:
23.8/11.9 Amps
Bearings:
Ball Bearings
Speeds:
1-Speed
Service Factor:
1.15
Insulation Class:
Class F
Mounting:
Rigid Base
Was: $1,115.50
Now: $995.56
Adding to cart… The item has been added
  • 10 hp 1800 RPM, 23.8/11.9 amps 230/460 Volts 60 Hz Three Phase Motor

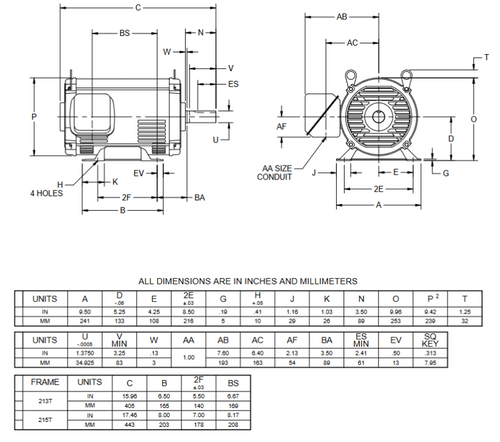

  • NEMA 215T Rolled Steel Frame with Cast Aluminum End Bells, Keyed Shaft 1 3/8" Diameter x 3 3/8"
  • Service Factor: 1.15 Overload protection = None
  • C-Face Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

Speed controllable motor for material handling, pumps, and fans, in normal environments. 5:1 speed range at constant torque, 20:1 at variable torque. NEMA design B. Brake provisions. Wiring diagram on motor name plate. ODP = Open Drip-Proof. HK17

!
