HD10V2B Nidec 10 hp 1800 RPM 215T (Rigid Base Cast Iron) 230/460V TEFC Inverter-Duty 3-Phase Motor

SKU:: HD10V2B
UPC:
Weight:: 170.00 LBS
Width:: 23.00 (in)
Height:: 16.00 (in)
Depth:: 19.00 (in)
Shipping:: Calculated at Checkout
ON SALE:: LIMITED TIME DISCOUNT
Voltage:: 230/460V
Horsepower:: 10 HP
RPM:: 1800
Phase:: Three Phase
Enclosure:: TEFC
Hertz:: 60 Hz
Amperage:: 25.7/12.8 Amps
Bearings:: Ball Bearings
Speeds:: 1-Speed
Service Factor:: 1.15
Insulation Class:: Class F
Mounting:: Rigid Base

Current Stock:

Was: $1,078.70

Now: $879.95

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

HD10V2B Nidec 10 hp 1800 RPM 215T (Rigid Base Cast Iron) 230/460V TEFC Inverter-Duty 3-Phase Motor

The HD10V2B is a 10 horsepower, 1800 RPM inverter-duty motor designed for demanding industrial applications such as material handling, cranes, and machine tools. It is built to operate reliably in hostile environments and can replace similar NEMA 215T frame motors.

Key Specifications

Horsepower: 10 hp
RPM: 1800
Voltage: 230/460 V
Amperage: 25.7/12.8 A
Enclosure: Totally-Enclosed Fan-Cooled (TEFC)

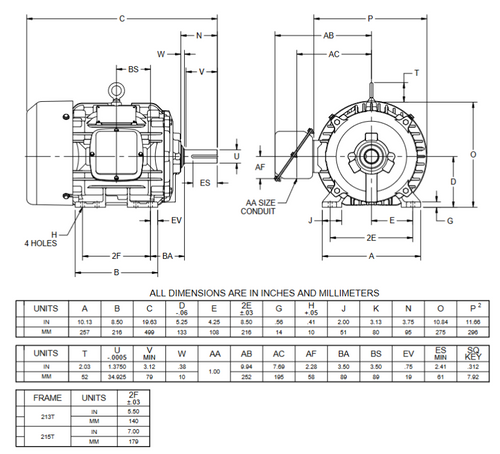

Frame / Diameter: NEMA 215T Cast Iron Frame
Shaft Dimensions: Keyed shaft, 1 3/8" diameter x 3 3/8" length
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base cast iron frame with a C-Face mount for straightforward installation. It supports a 5:1 speed range at constant torque and up to 20:1 at variable torque, making it suitable for speed-controllable applications. The motor includes brake provisions and a wiring diagram located on the nameplate for ease of setup. It is built to NEMA design B standards and utilizes Class F insulation for enhanced durability.
