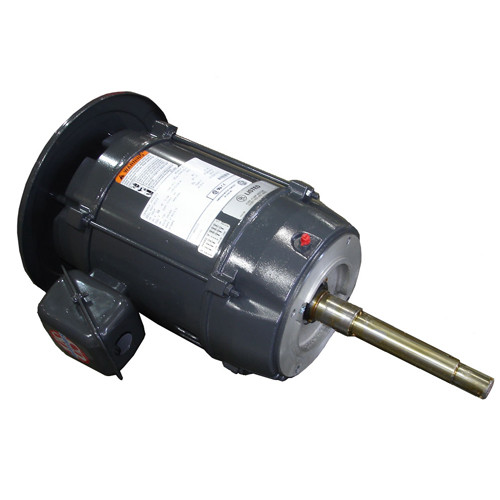

FF50E1GV Nidec 50 hp 3600 RPM 3-phase 324JP Frame 575V ODP Vertical Close-Coupled Fire Pump Motor

SKU:: FF50E1GV
UPC:
Weight:: 385.00 LBS
Width:: 18.00 (in)
Height:: 34.00 (in)
Depth:: 24.00 (in)
Shipping:: Calculated at Checkout
ON SALE:: LIMITED TIME DISCOUNT
Voltage:: 575V
Horsepower:: 50 HP
RPM:: 3600
Phase:: Three Phase
Frame:: 324JP Frame
Enclosure:: ODP
Hertz:: 60 Hz
Amperage:: 46.0 Amps
Bearings:: Ball Bearings
Insulation Class:: Class F
Rotation:: Reversible

Current Stock:

Was: $7,301.35

Now: $6,519.35

Quantity:

Adding to cart… The item has been added

Description
Compliance & Restrictions

50 HP 3600 RPM, 46.0 amps, 575V 60 Hz, 3 Phase.
NEMA 324JP Rolled Steel Frame, JP stainless steel shaft
1.15 Service Factor, Class F insulation
Reversible Rotation,
Face Mount, No Base, Ball Bearings,

Meets NFPA 20 standards. Close Coupled motors have the pump impeller mounted directly on the shaft. 1 Year Manufacture Warranty. ODP = Open Drip Proof, AD31
